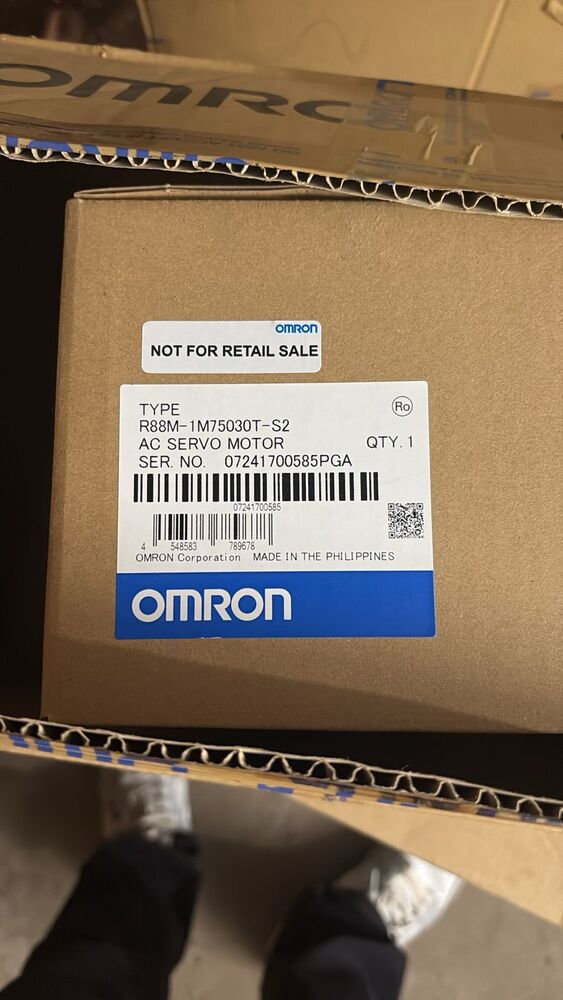

OMRON AC SERVO MOTORS,R88M-1M75030T-S2, R88M-1M40030T-S2,R88M-1M75030T-S2

OMRON AC SERVO MOTORS,R88M-1M75030T-S2, R88M-1M40030T-S2,R88M-1M75030T-S2 Specification

Standard
CE, RoHS Compliant

Sealed Type
Sealed (IP65, Excluding Shaft Side)

Horse Power
0.53 HP (400W), 1 HP (750W)

Torque
1.3 Nm (400W), 2.4 Nm (750W)

Power Rating
400W, 750W

Pressure
Atmospheric

Bearing Type
Precision Ball Bearing

Poles Number
8 Poles

Features
Compact Design, High Response, Precision Control

Rated Voltage
200V AC

Noise Level
< 65 dB

Cooling Method
Natural Cooling

Current Type
AC

Motor Type
AC Servo Motor

Rated Frequency
50/60 Hz

Voltage
200V AC

Starting Type
Direct Start

Ambient Temperature
0°C to 40°C (No freezing or condensation)

Efficacy
High Efficiency

Product Type
AC Servo Motor

Output Power
400W / 750W (model specific)

Frequency (MHz)
50/60 Hz

Protect Feature
Overload/Overheat Protection

Phase
Three Phase

Speed
3000 rpm Rated

Power
400W, 750W (model specific)

Color
Standard Black/Silver

Dimension (L*W*H)
Model Dependent (Refer to Data Sheet)

Weight
Approx. 2.5 kg - 4.5 kg (model specific)

Shaft Diameter
14 mm (model specific)

Mounting Type
Flange Mount

IP Rating
IP65 (Except shaft through portion)

Allowable Axial Load
98 N

Brake Option
Available with or without Holding Brake

Encoder Resolution
20-bit incremental (standard)

Connection Type
Pre-wired cable

Max Instantaneous Torque
3x Rated Torque

Model Numbers
R88M-1M75030T-S2, R88M-1M40030T-S2

Allowable Radial Load
196 N (at specified shaft position)

Application
CNC Machines, Robotics, Automation Equipment

Insulation Class
Class F

OMRON AC SERVO MOTORS,R88M-1M75030T-S2, R88M-1M40030T-S2,R88M-1M75030T-S2 About

Take advantage of illustrious engineering with OMRON AC Servo Motors R88M-1M75030T-S2 and R88M-1M40030T-S2-trending choices for precise motion control in CNC machines, robotics, and automation. Boasting a gilt-edged 20-bit incremental encoder and exquisite CE- and RoHS-compliant build, these motors deliver a remarkable blend of high efficiency and precision control. Jump on impeccable features: 3x rated max torque, IP65-rated sealing, brake options, and secure pre-wired connections. Rely on overload/overheat protection for longevity. Available in both 400W and 750W outputs, with compact design and advanced noise reduction. Secure your advantage today as a supplier, trader, or wholesaler in the Philippines.

Versatile Performance for General and Specific Applications

OMRON AC Servo Motors-R88M-1M75030T-S2 and R88M-1M40030T-S2-are engineered for outstanding performance across general and specialized uses. Their precision makes them indispensable in CNC machining, robotics, and automation equipment. Featuring high response, precision control, and natural cooling, these motors suit diverse environments. With a robust insulated Class F design, adjustable brake options, and a sealed IP65 construction, they meet demanding operational standards, addressing both standard and cutting-edge motion control needs effectively.

Reliable Packaging, Payment, and Delivery Support

Delivered in robust, secure packaging, OMRON AC Servo Motors ensure verified shipment integrity upon arrival. Purchase orders are efficiently handled, supporting smooth procurement. We accept conventional payment terms that accommodate business requirements-ensuring a hassle-free transaction. All motors are shipped via secure shipping partners, and FOB Port options are available for streamlined international logistics. Rely on us for timely delivery, traceable shipments, and a procurement process designed for your convenience and confidence.

FAQ's of OMRON AC SERVO MOTORS,R88M-1M75030T-S2, R88M-1M40030T-S2,R88M-1M75030T-S2:

Q: How do I select the correct OMRON AC Servo Motor model for my application?

A: Identify your required output power (400W or 750W), torque, and brake option. Confirm the motor's suitability for your machinery-such as CNC machines or robotics-by checking dimensions, mounting requirements, and IP rating.

Q: What are the key features of the R88M-1M75030T-S2 and R88M-1M40030T-S2 models?

A: These models offer a 20-bit incremental encoder, high efficiency, Class F insulation, an impressive 3x rated instant torque, optional holding brake, compact design, and IP65 protection (except shaft through portion).

Q: When does delivery occur after placing a purchase order?

A: Shipping schedules depend on your location and FOB Port choice. Typically, orders are processed promptly, with secure packaging dispatched according to agreed timelines.

Q: Where can these OMRON Servo Motors be used?

A: They are widely used in CNC machinery, robotic systems, and automation equipment, offering precision control and flexibility for both industrial and research applications.

Q: What is the process for purchasing OMRON AC Servo Motors?

A: Submit a purchase order specifying desired models and configurations. Our team will confirm your order, arrange payment, and coordinate secure shipping to your location.

Q: How does the overload and overheat protection benefit the motor?

A: Built-in overload and overheat protection enhance motor lifespan by preventing damage during demanding operations, ensuring uninterrupted performance and reduced maintenance needs.
