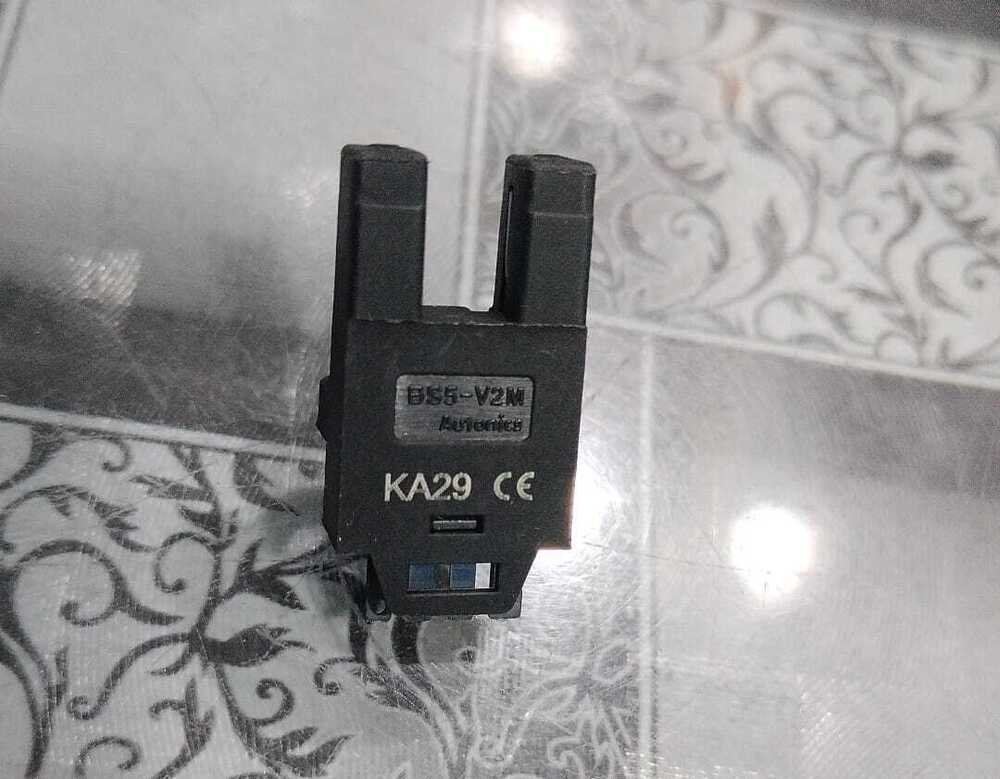

AUTONICS PHOTOELECTRIC SENSOR, BS5-V2M

AUTONICS PHOTOELECTRIC SENSOR, BS5-V2M Specification

Interface
3-wire

Signal Type
Digital

Operating Temperature
-10°C to +50°C Celsius (oC)

Sensitivity
Adjustable

Mounting Type
Screw Mount

Cable Length
2m Meter (m)

Sensor Type
Diffuse Reflective

IP Rating
IP50

Measurement Range
0-10cm (approximate sensing distance)

Wireless
No

Application
Conveyor systems, packaging lines

Features
Compact size, easy installation, LED indicator

Product Type
Photoelectric Sensor

Material
Polycarbonate housing

Input
DC 12-24V

Output
NPN/PNP Open Collector

Function
Object detection

Usage
Industrial automation, position detection

Voltage
12-24V DC Volt (v)

Weight
Approx. 10g Grams (g)

LED Indicator
Operation Indicator (Red LED)

Light Source
Infrared LED

Vibration Resistance
10 to 55 Hz, Double amplitude 1.5mm, X, Y, Z directions

Storage Temperature
-25C to +70C

Polarity Protection
Reverse polarity protected

Minimum Object Detectable
Opaque object, size 1mm

Connection Type
Pre-wired

Ambient Light Immunity
Sunlight: 10,000 lx max. / Incandescent: 3,000 lx max.

Shock Resistance
500 m/s2, X, Y, Z directions

Max Load Current
100mA

AUTONICS PHOTOELECTRIC SENSOR, BS5-V2M Trade Information

Minimum Order Quantity
30 Number

Supply Ability
1000 Per Month

Delivery Time
7 Days

About AUTONICS PHOTOELECTRIC SENSOR, BS5-V2M

Discover first-class performance with the AUTONICS PHOTOELECTRIC SENSOR, BS5-V2M, now available at a reduced price. Highly acclaimed for its accuracy and reliability in industrial automation, this masterpiece offers a grandiose blend of savings and advanced features. With an infrared LED light source and robust polycarbonate housing, it effortlessly detects opaque objects from 1mm upwards. Benefit from ambient light immunity and secure operation backed by reverse polarity protection. Ideal for conveyor systems and packaging lines, this compact sensor ensures high-efficiency object detection with seamless installation and digital output options.

Application Versatility and Suitability

The AUTONICS PHOTOELECTRIC SENSOR, BS5-V2M is engineered for grandiose performance across a range of surfaces and environments. Suitable for use in industrial automation, it excels in general and specific applications such as position and object detection. Its high sensitivity and compact design make it the first-class choice for conveyor systems, packaging lines, and other automated processes where precision and reliability are crucial.

FOB Port, Certifications, and Sample Availability

Quick dispatch is assured for BS5-V2M orders via major China FOB ports. The sensor comes with necessary certifications to guarantee quality and compliance, making it an acclaimed option among professional suppliers and wholesalers. For buyers seeking to evaluate product excellence, samples are available at a nominal charge or outlay, enabling confident procurement and smooth integration into your automation systems.

FAQs of AUTONICS PHOTOELECTRIC SENSOR, BS5-V2M:

Q: How does the AUTONICS PHOTOELECTRIC SENSOR, BS5-V2M benefit industrial automation systems?

A: The AUTONICS BS5-V2M enhances industrial automation by providing high-accuracy object and position detection, quick response, and ambient light immunity, thus improving efficiency and reliability in processes like packaging and conveyor operation.

Q: What is the recommended application surface and usage for BS5-V2M sensors?

A: The BS5-V2M sensor is suitable for use on conveyor belts, packaging lines, and general industrial surfaces requiring precise object detection, especially for opaque items measuring 1mm or larger.

Q: Where can buyers access FOB shipping and sample availability for the BS5-V2M?

A: Buyers can access FOB shipping through major China ports, and samples are available directly from recognized suppliers or wholesalers, typically with a nominal charge to ensure informed procurement decisions.

Q: What certificates or regulations does the BS5-V2M sensor comply with?

A: The BS5-V2M sensor comes certified for industrial quality and safety standards to ensure optimal performance and compliance in automated environments. Specific certification details are available upon request from authorized distributors.

Q: How is the installation process for the AUTONICS BS5-V2M sensor managed?

A: Installation is straightforward thanks to its compact, screw-mount design and pre-wired interface, allowing for quick setup and integration into existing automated systems without demanding extensive technical expertise.
