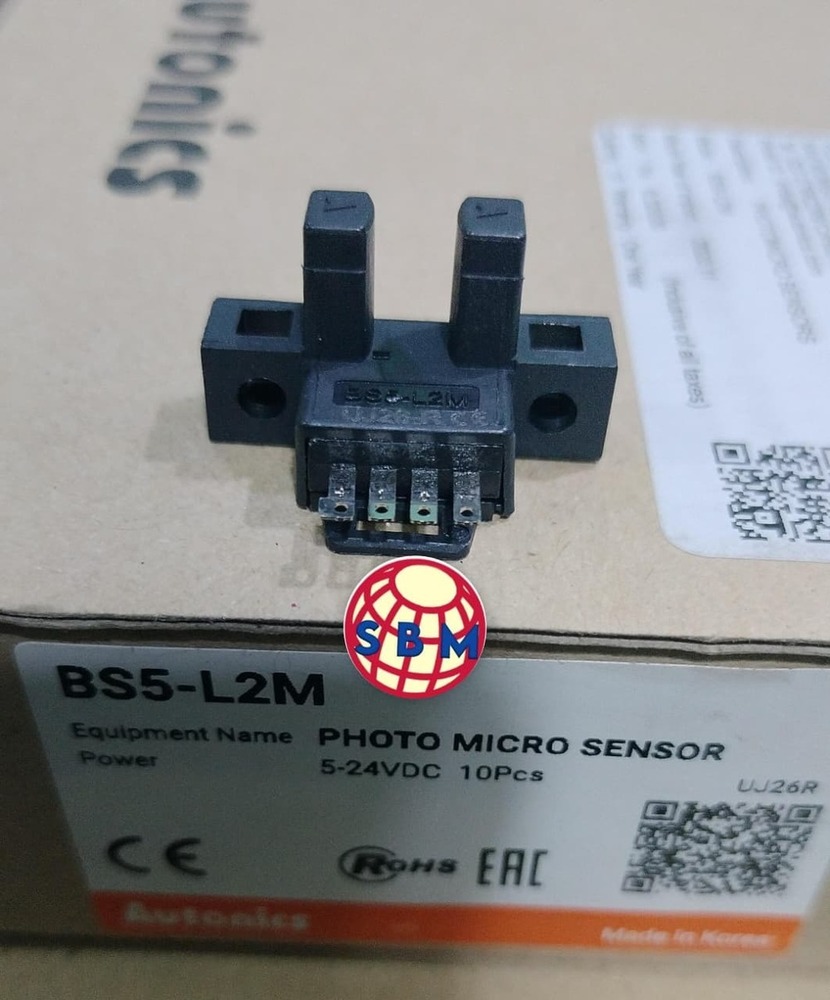

AUTONICS PHOTO MICRO SENSOR 5-24VDC, BS5-L2M

AUTONICS PHOTO MICRO SENSOR 5-24VDC, BS5-L2M Specification

Measurement Range
Slit width 0.2 mm (typical)/Detectable minimum target size: 0.3 mm

Cable Length
2m

Sensor Type
Photomicrosensor (photointerrupter)

Signal Type
Digital (on/off)

Interface
3-wire DC

Features
Miniature size, fast response, low current consumption

Application
Automation systems, conveyor objects, parts counting

Sensitivity
High sensitivity for small object detection

Mounting Type
Panel/Bracket mount

IP Rating
IP50

Wireless
No

Operating Temperature
-10C to +60C

Response Time
Under 1 ms

Power Consumption
Max. 25 mA

Product Type
Photo Micro Sensor

Material
Plastic (housing), electronic components

Input
5-24V DC

Output
NPN Open Collector

Function
Detection of objects via interruption of light beam

Usage
Industrial automation, position detection, machine control

Accuracy
High accuracy (micro level)

Resolution
0.2 mm (slit width)

Voltage
5-24V DC

Weight
Approx. 20g

Indicator
Operation LED (Red)

Control Output
NPN Open Collector, Max 30V DC, 50 mA

Hysteresis
Less than 0.05 mm

Insulation Resistance
Over 20 M (at 500V DC)

Dielectric Strength
1000V AC 50/60Hz for 1 min

Vibration Resistance
10-55 Hz, double amplitude 1.5 mm

Case Material
PBT (Polybutylene Terephthalate)

Shock Resistance
500 m/s2 (approx. 50G)

Connection Method
Pre-wired type

Ambient Humidity
35% to 85% RH

Light Source
Infrared LED (wavelength: approx. 940 nm)

AUTONICS PHOTO MICRO SENSOR 5-24VDC, BS5-L2M About

Take advantage of the dazzling performance and sublime accuracy of the AUTONICS PHOTO MICRO SENSOR 5-24VDC, BS5-L2M. This featured photomicrosensor boasts a gorgeous, compact design and delivers high sensitivity, making it ideal for micro-level object detection in automation systems. With its infrared LED light source (approx. 940 nm), robust NPN open collector output, fast response time under 1 ms, and low current consumption, it's perfect for precision applications. Enjoy markdown pricing and effortless integration thanks to simple pre-wired connections and IP50 housing.

Versatility & Professional Application

The AUTONICS PHOTO MICRO SENSOR 5-24VDC, BS5-L2M is suitable for use in industrial automation, position detection, and machine control. Perfect for application media like conveyor objects and parts counting, it is used by manufacturers, engineers, and machine designers seeking accurate, reliable performance. Its micro-level resolution ensures efficiency across assembly lines and precise detection tasks, streamlining workflows for professionals worldwide.

Logistics, Domestic Network & Approvals

Dispatched promptly from our FOB China port, the AUTONICS PHOTO MICRO SENSOR reaches your facility via reliable transportation partners. Estimate delivery timelines easily for both domestic and international orders. We cater to a broad domestic market and supply recognized industry certifications. Each sensor is tested to meet strict quality standards, ensuring dependable operation from arrival through application.

FAQ's of AUTONICS PHOTO MICRO SENSOR 5-24VDC, BS5-L2M:

Q: How does the AUTONICS PHOTO MICRO SENSOR detect objects?

A: The sensor operates by sending an infrared beam; when an object interrupts this beam, the sensor outputs a digital on/off signal, making it suitable for precise detection tasks.

Q: What applications are ideal for the BS5-L2M sensor?

A: This sensor is perfect for automation systems, including conveyor object counting, position detection, and parts sorting in manufacturing and assembly lines.

Q: Where can this photo micro sensor be installed?

A: It is generally panel or bracket mounted in equipment and control systems, thanks to its miniature size and pre-wired configuration for easy integration.
